Type-Safe GraphQL With Hasura and the graphql-codegen CLI Tool

In the last few months, the Catalog Engineering team has been hard at work on a new app to improve our customer’s course curation process. This app connects to our new Hasura GraphQL API, to which we make requests for, and to mutate, data. Early on, we made the decision to not use a dedicated GraphQL client (e.g., apollo) and so we got used to creating TypeScript types for our GraphQL requests/responses as we needed them. This worked fine in the beginning as our app only had a few simple requests. However, as the number and complexity of these requests/responses grew, it became apparent that we needed a better solution.

Enter graphql-codegen - a CLI tool that allows you to generate typed queries, mutations, subscriptions, and more based on your GraphQL schema. With graphql-codegen we were able to remove all of our manual types and generate new (and better!) types on the fly. This post will walk through how we connected the tool to our Hasura GraphQL schema, how we’re able to make use of those types, and walkthrough setting up a custom ‘SDK’ that makes calling our methods a breeze. Let’s get started!

Installation

Note: the following steps assume you have a working TypeScript app that is connected to an established Hasura GraphQL API with at least one GraphQL query/mutation/subscription

First, you’ll need to install the tool and a few dependencies. Run the following:

npm i graphql graphql-config

And a few dev dependencies (we’ll talk a bit more about some of these later):

npm i -D @graphql-codegen/cli @graphql-codegen/typescript @graphql-codegen/typescript-operations @graphql-codegen/typescript-generic-sdk

Configuration

Next, create a GraphQL config file (detailed information on graphql-config can be found here):

// graphql.config.ts

import type { IGraphQLConfig } from 'graphql-config';
import { loadEnv } from 'vite';

const { HASURA_ADMIN_SECRET, VITE_GRAPHQL_API_URL } = loadEnv('', process.cwd(), '');

const config: IGraphQLConfig = {
  schema: [
    {
      [VITE_GRAPHQL_API_URL]: {
        headers: {
          'x-hasura-admin-secret': HASURA_ADMIN_SECRET,
        },
      },
    },
  ],
  documents: 'src/**/*.graphql',
  extensions: {
    codegen: {
      overwrite: true,
      generates: {
        'src/__generated__/graphql.ts': {
          plugins: ['typescript', 'typescript-operations', 'typescript-generic-sdk'],
          config: {
            skipTypename: true,
            namingConvention: {
              typeNames: 'change-case-all#pascalCase',
              enumValues: 'change-case-all#upperCase',
            },
            rawRequest: true,
            scalars: {
              uuid: 'string',
            },
          },
        },
      },
    },
  },
};

export default config;

A few notes about the above config:

• We are using Vite as our build tool. We import several environment variables via Vite’s loadEnv. The schema config will be the same for you - just pop in your Hasura GraphQL API URL and admin secret and you should be set
• Plugins allows for tons of custom configuration. We’ve chosen several customization that work well for us, but you might choose something differe. Also, make note of the typescript-generic-sdk plugin - we’ll talk more about that later

An Example Mutation

Let’s quickly walk through the example mutation that we’ll be reference moving forward. Our Hasura GraphQL schema has a table called users, so we’ll need a way to add new users. In order to do that, we’ll use the following mutation:

# src/graphql/createUser.graphql

mutation createUser($organization_id: String, $user_id: uuid) {
  insert_user_detail_one(object: { organization_id: $organization_id, id: $user_id }) {
    id
  }
}

As you can see, this mutation takes an organization_id and user_id and returns the user’s id

Generating Types

Now that we have our mutation and the tool is configured, let’s see what our generated output looks like. We can run npm run graphql-codegen to kick that off

Once finished, you should see src/__generated__/graphql.ts. Looking inside, we can see types for the mutation and the mutation’s variables:

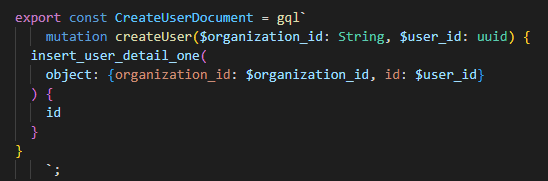

as well as a const for the GraphQL document:

Pretty cool, right?! Now, how can we make use of these types? Since we’re not using something like Apollo, we’d need to wire up our Hasura requester to handle our newly generated mutation variables, return types, and the GraphQL document - that sounds like a lot of work, right?! This is where we can make use of that ‘SDK’ mentioned earlier

Putting Everything Together

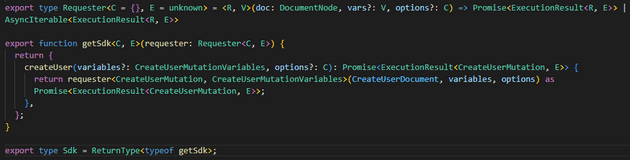

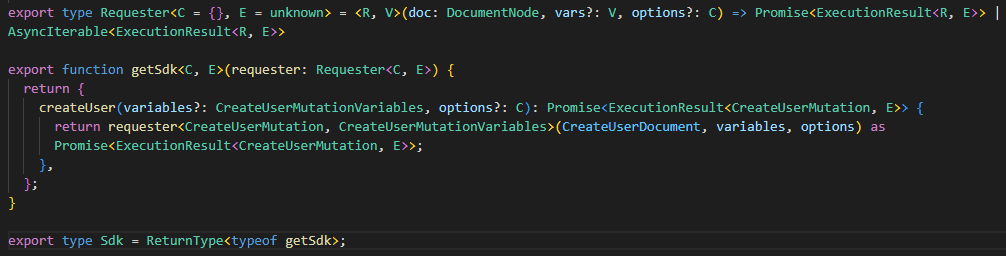

If we continue searching in graphql.ts, we’ll see that we also have a type for a requester and an ‘SDK’ which has everything neatly typed and ready to go:

All we need to do at this point is to implement the requester and we should be able to call the createUser method from the ‘SDK’. That might look something like this:

// hasuraRequester.ts

import { DocumentNode, ExecutionResult } from 'graphql';
import { getSdk } from '../__generated__/graphql';

const requester = async <R, V>(doc: DocumentNode, variables?: V, options?: { jwt: string }) => {
  const requestBody = { query: doc.loc?.source.body, variables };
  const requestOptions = {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
      Authorization: `Bearer ${options?.jwt}`,
    },
    body: JSON.stringify(requestBody),
  };

  const response = await fetch(import.meta.env.HASURA_API_URL, requestOptions);
  return (await response.json()) as ExecutionResult<R, unknown>;
};

const sdk = getSdk(requester);

const createHasuraUser = (userId: string, orgId: string) => {
  return sdk.createUser({ organization_id: orgId, user_id: userId });
};

export default createHasuraUser;

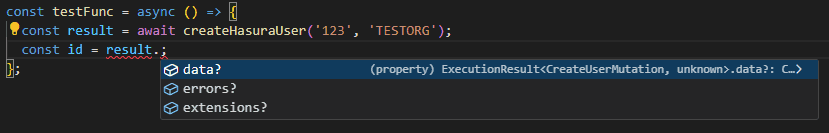

If we import the ‘SDK’, we should now have typing around calling the createHasuraUser method:

and we see the typed response:

and if we keep going, we also see the id mentioned earlier would be available to us
